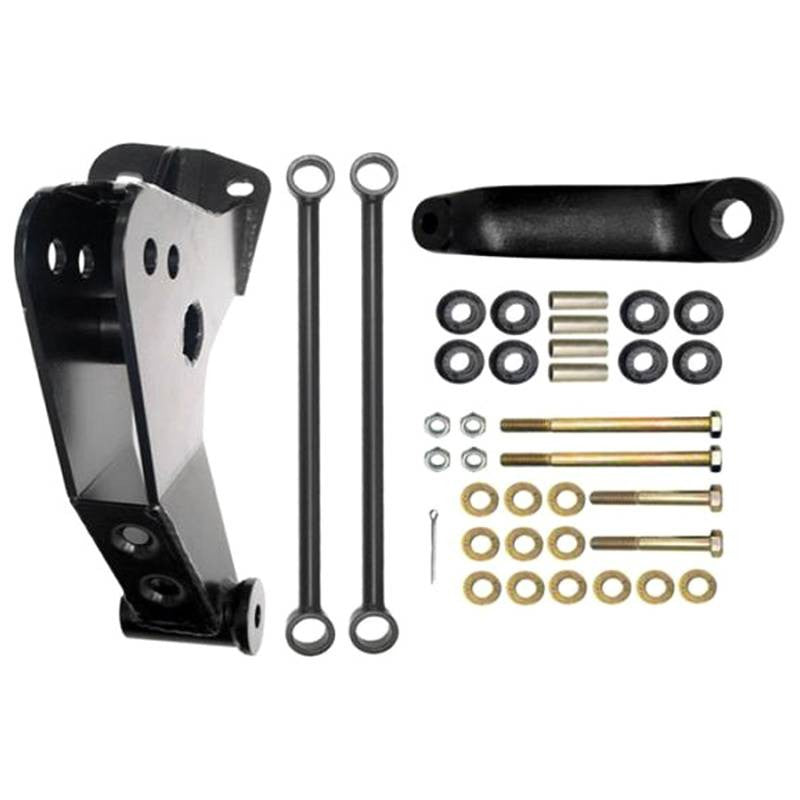

ICON 2003-2008 Dodge Ram 2500/3500 4wd 4.5" Stage 4 Suspension System

OVERVIEW 2003-2008 Ram 2500/3500 4.5 Inch Stage 4 Suspension System utilizes the same technology as the 2.5 Inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Inch Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. The multi leaf expansion pack improves compliance with a more progressive rate. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market. FEATURES & BENEFITS ICON engineered dual rate coil springs with match tuned 2.5 Aliminum Series reservoir shocks Adjustable track bar with PTFE lined FK bearings Heavy-duty steel upper and lower link bars Increased wheel travel and ride quality over stock with no change in towing capacity Correctly positioned steering and track bar components Level stance front to rear Less body roll than stock No drive shaft modifications needed DOWNLOAD INSTALLATION GUIDE 214010 217810P 214030 WARRANTY TECH INFO: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” Backspace / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE Ships in Multiple Boxes SYSTEM COMPONENTS: 214030 (QTY: 1) | 03-12 RAM HD ADJ TRACK BAR KIT 37023 (QTY: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT 211205 (QTY: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT 217810P (QTY: 1) | 03-12 RAM HD 4.5" FRONT 2.5 VS RR PAIR 214010 (QTY: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT 214040 (QTY: 1) | 03-12 RAM HD 4.5" BOX KIT 217701P (QTY: 1) | 03-12 RAM HD 2-3" REAR 2.5 VS PB PAIR 214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
